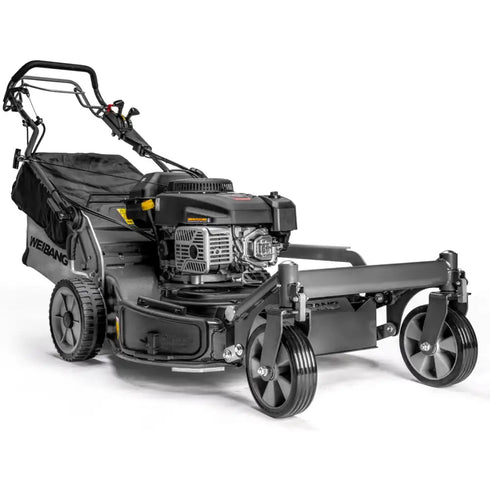

Weibang Virtue 77 TBO C Twin Blade Mower Castor Wheels WGMP145
*** INSTOCK NOW ***
The new Virtue 77 TBO C includes heavy duty front castor wheels for maximum manoeuvrability. The machine can turn on the spot making light work of any area. The front castors feature a locking mechanism for areas where straight lines are required.
VRS - Vibration Reduction System
The Virtue 77 TBO C features the latest second generation WEIBANG XV Series engine. The new design offers exceptionally low vibration thanks to new engineering techniques and features 300cc / 5.6kW power output for consistent performance.
Professional Aluminium Gearbox
The Virtue 77 TBO C features a heavy duty commercial 3 speed gearbox. Manufactured with high quality aluminium casings, hardened steel internal components, and solid gears to ensure precise and reliable drive.
Twin Blade Overlap System
The newest addition to the Virtue range offers an unrivalled 77cm cutting width with twin blade overlap design. Enabling the largest areas to be cut with ease and with an additional 45% more productivity when compared to a 53cm model, the 77 TBO is the flagship of the Virtue family. It is the overlap deck design that allows for a wide area to be cut efficiently and gives huge benefits to the collection, side discharge and mulching performance.
Pressure Lubricated
The XV300 engine features pressure lubrication with a spin-off oil filter for ease of maintenance. The pressurised system ensures ultimate durability as well as the ability to work on slopes.
Simple V-belt Design
The V-belt system is designed for optimum performance and minimal downtime. The pulley layout allows maximum power transfer while reducing belt wear for maximum durability.
Independent Height Of Cut
The 77 TBO C features independent height adjustment for the front and rear of the machine with 15 cutting heights from 17mm - 129mm to maintain any grass area whether short and formal or longer and more natural.
Side Discharge & Mulching
The Virtue 77 TBO C offers 4 in 1 functionality, with rear discharge and rear collect, side discharge for overgrown areas such as paddocks and pathways, and a high performance mulching kit (baffle plate & blades) for exceptional mulching results.
Large 90L Collector
The large 90L collector allows longer cutting periods between emptying as well as featuring airflow fabric to indicate when the collector is full and avoid blockages.
Service & Storage Position
As a commercial lawnmower, easy transportation is key which is why we developed our quick release folding handles to allow for easy lifting when moving between locations, and easy access to the underside of the deck in the service position for cleaning and general maintenance.
Maximum Productivity
The new Virtue 77 TBO C includes heavy duty front castor wheels for maximum manoeuvrability. The machine can turn on the spot making light work of any area. The front castors feature a locking mechanism for areas where straight lines are required.
Easy to Operate
The WEIBANG controls are designed for simple operation and unrivalled durability. Featuring a heavy duty rubber grip, flush OPC and drive levers for user comfort, and simple throttle and speed levers which can be easily accessed for routine maintenance. Due to the additional weight of the 77 TBO C the handles feature a parking brake, ensuring safety when not in use or during transport.
Easy Cable Access
The controls feature an open back cockpit design, offering simple easy access to cables for adjustment or routine maintenance. Furthermore, the cables feature a heavy duty design with dust covers and spring mountings for added durability.
Easy Maintenance
As a commercial machine the 77 TBO C was designed for simple maintenance, with easy access to the oil dipstick, spark plug, oil and air filter, to make routine maintenance fast and minimise downtime.
| Type | Front Castor Wheeled Rotary |
|---|---|
| Cutting Width | 77cm / 30.5inch Twin Blade Overlap |
| Cutter Deck Material | Steel |
| Suitable Area | up to 4500m² |
| Drive | 3 Speed |
| Drive Speed | 3 / 3.5 / 4.5 km/h |
| Blade Brake | Yes |
| Engine Model | WEIBANG XCV300 |
| Engine Displacement (cc) | 300 |
| Engine Rated Power (kW/rpm) | 5.6 / 3200 |
| Engine Rated Torque (Nm) | 17.3 |
| Fuel Tank Capacity (l) | 4 |
| Blade Protection | CPS - Slip Washer |
| Collector Capacity (l) | 90 - Inc. Airflow Fabric |
| Rear Discharge | Yes |
| Mulching | Yes - High Performance Kit |
| Side Discharge | Yes |
| Height Adjustment Type | Central |
| Height Adjustment Positions | 15 |
| Cutting Heights (mm) | 17 - 129 (Collect & Side Discharge) / 29 - 129 (Mulching) |
| Quick Release Handles | Adjustable Ratchet |
| Service Position | Yes |
| Storage / Transport Position | Yes |
| Front Bumper | Yes |
| Deck Protection | Rolled Deck Lip |
| Wheel Material (rim/tyre) | Nylon / Polyurethane |
| Wheel Diameter (mm) | F 230 (65 wide) / R 265 (80 wide) |
| Weight (kg)* | 123.5kg *Total Weight Including Accessories |
| Dimensions (L x W x H mm) | 2114 x 820 x 1250 |
| Storage Dimensions (L x W x H mm) | 1227 x 820 x 610 |
| Vibration Level** (m/s²) | 5.92 **Uncertainty Factor 1.5 m/s² |
| Noise Level (dB(A)) | 100 |
| Warranty (domestic/commercial) | 5 Years / 1 Year (T&Cs Apply) |
